Description

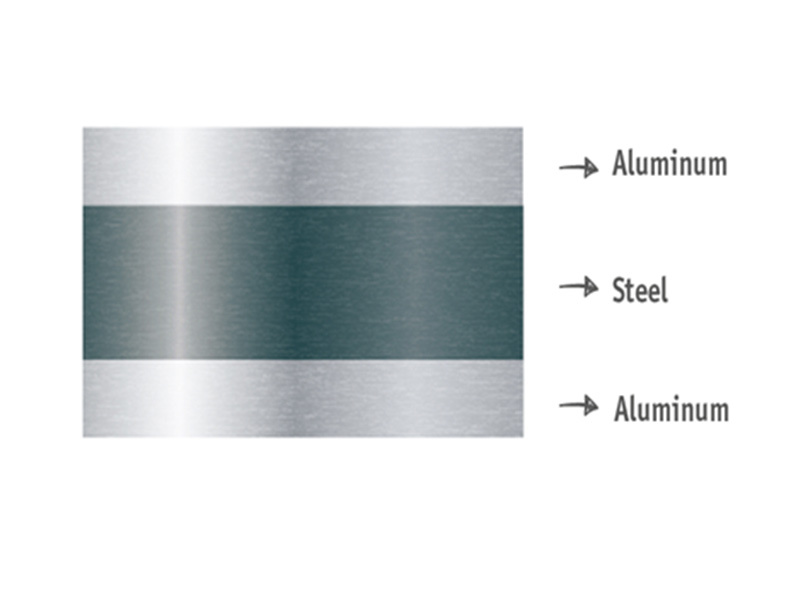

Single/double-side aluminum-steel composite plates &strips
Characters:
One or two sides aluminum clad steel has the advantages of high strength, good plasticity, good wear–resisting property and inoxidizability (no iron scale), high thermal conductivity, good heart reflecting performance and recylinuse without pollution. The stainless steel is expensive and the other coating process can not satisfy the requirement so the advantages of aluminum clad steel make it be the succedaneum.
Our Aluminum clad steel are mainly used in the filed of cookware, mobile phone,Hose quick coupling,Dry Air cooling Condenser(DDCC), architecture, wall, doors etc
Specifications available
|
Total thickness (mm) |
Thickness of the Aluminum (mm) |
Width (mm) |
Length (mm) |
|
0.3 |
2 X 0.03 |
≤ 600mm Less than or equal to 600mm |
≤3000mm or coil Less than or equal to 3000mm or in coil |
|
0.6 |
2 X 0.05 |
||
|
1.0 |
2 X 0.1 |
||
|
1.5 |
2 X 0.1 |
||
|
2.0 |
2 X 0.15 |
Note：Other specifications also can provide after negotiation.
Product Performance:
|
Material |
Composition (%) |
Density （g/cm³） |
Conductivity (m/Ωmm2) |
Tensile Strength （Mpa） |
Elongation （%） |
Combined strength
|
||
|
Annealing soft state |
Half hard state |
Annealing soft state |
Half hard state |
|||||
|
Aluminum Clad Steel |
5/90/5 |
7.4 |
10.3 |
≥330 |
≥410 |
≥30 |
≥20 |
Re-bend until break without separation |
|
Aluminum Clad Steel |
10/80/10 |
6.8 |
13 |
≥300 |
≥410 |
≥30 |
≥20 |
|
